mComm_optionsForConfig.h File Reference

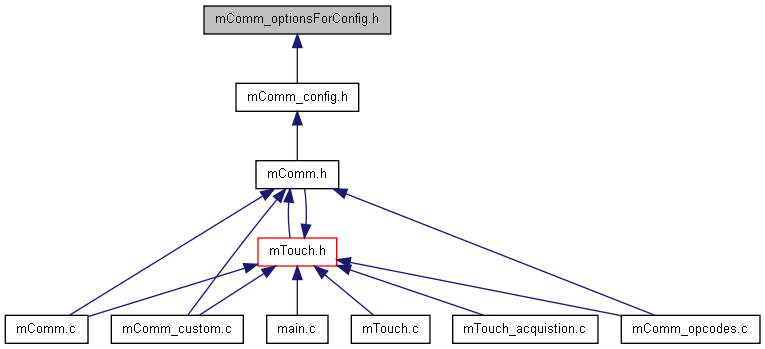

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Defines
#define	MCOMM_UART_HARDWARE_MODULE   0
#define	MCOMM_UART_SOFTWARE_IMPLEMENTATION   1
#define	MCOMM_UART_1WAY_HEX   0
#define	MCOMM_UART_1WAY_DECIMAL   1
UART-PC Communications Setup (mComm_config.h)
These configuration options define if and how the mTouch framework is to communicate with a PC. Attention: It is highly recommended that you look at the raw data output to determine how the system is behaving and where to place the thresholds.
#define	MCOMM_UART_ONE_WAY
	Option for MCOMM_TYPE :: Transmit-only ASCII UART communications - Hardware/Software UART.
#define	MCOMM_UART_TWO_WAY
	Option for MCOMM_TYPE :: Bidirectional Binary UART communications - UART module required.
#define	MCOMM_I2C_TWO_WAY
	Option for MCOMM_TYPE :: Bidirectional Binary I2C communications - SSP module required.
#define	MCOMM_SPI_TWO_WAY
	Option for MCOMM_TYPE :: Bidirectional Binary SPI communications - SSP module required.

---

Detailed Description

Definition in file mComm_optionsForConfig.h.

---

Define Documentation

#define MCOMM_I2C_TWO_WAY

Option for MCOMM_TYPE :: Bidirectional Binary I2C communications - SSP module required.

#define MCOMM_SPI_TWO_WAY

Option for MCOMM_TYPE :: Bidirectional Binary SPI communications - SSP module required.

#define MCOMM_UART_1WAY_DECIMAL   1

Definition at line 67 of file mComm_optionsForConfig.h.

#define MCOMM_UART_1WAY_HEX   0

Definition at line 66 of file mComm_optionsForConfig.h.

#define MCOMM_UART_HARDWARE_MODULE   0

Definition at line 62 of file mComm_optionsForConfig.h.

#define MCOMM_UART_ONE_WAY

Option for MCOMM_TYPE :: Transmit-only ASCII UART communications - Hardware/Software UART.

#define MCOMM_UART_SOFTWARE_IMPLEMENTATION   1

Definition at line 63 of file mComm_optionsForConfig.h.

#define MCOMM_UART_TWO_WAY

Option for MCOMM_TYPE :: Bidirectional Binary UART communications - UART module required.
